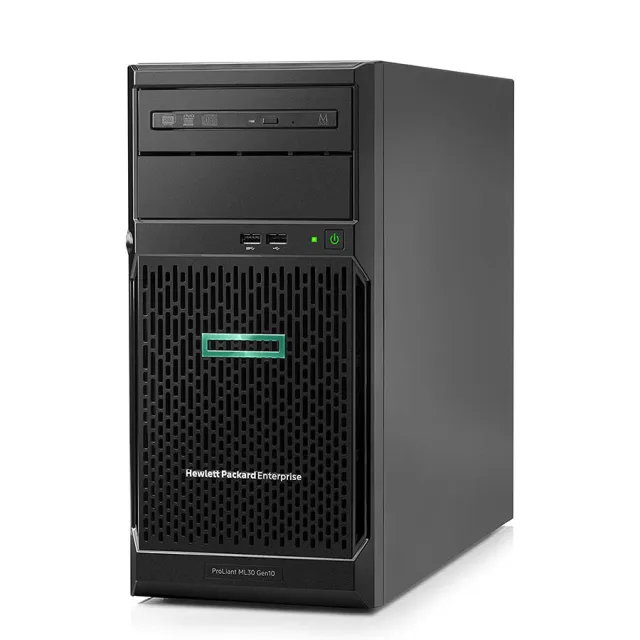

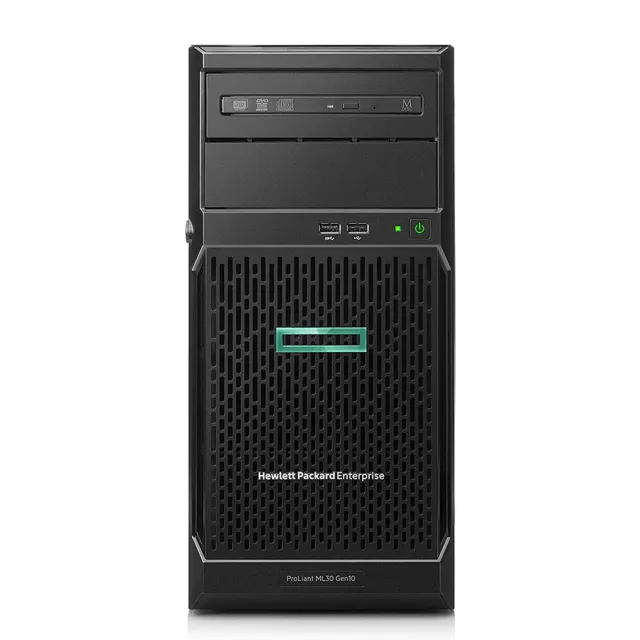

HPE ML30 Gen10 Xeon E2224/ 16GB/ 2x 1.0TB Business Critical/ 350W HP PSU/ 3y-1y-1y/ P16928-421

General

• Type

  Server
• Product Form Factor

  Tower – 4U
• Server Scalability

  1-way
• Front Accessible Bays Qty

  2
• Hot-Swap Bays Qty

  4
• Localisation

  Region: Europe

Processor / Chipset

• CPU

  Intel Xeon E-2224
• Clock Speed

  3.4 GHz
• Max Turbo Speed

  4.6 GHz
• Number of Cores

  Quad-Core
• CPU Qty

  1
• Max CPU Qty

  1
• CPU Upgradability

  Upgradable
• Processor Main Features

  Intel Turbo Boost Technology, Intel Smart Cache
• Chipset Type

  Intel C246

Cache Memory

• Installed Size

  L3 Cache – 8 MB
• Cache Per Processor

  8 MB

RAM

• Installed Size

  16 GB / 64 GB (max)
• Technology

  DDR4 SDRAM – ECC
• Rated Memory Speed

  2666 MHz
• Form Factor

  DIMM 288-pin
• Slots

  4 (Total) / 3 (empty)
• Features

  Unbuffered
• Configuration Features

  1 x 16 GB

Hard Drive

• Type

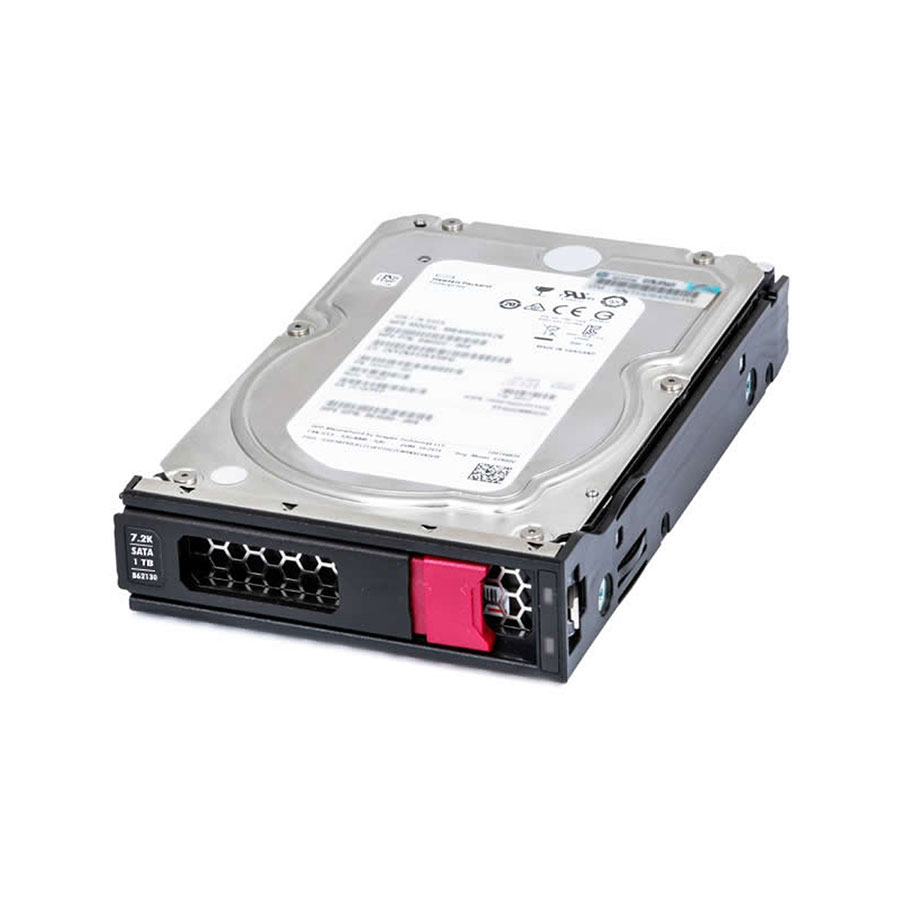

  2 x 1.0TB Business Critical

Storage Controller

• Type

  1 x RAID
• Controller Interface Type

  SATA 6Gb/s
• Storage Controller Name

  HPE Smart Array S100i SR Software RAID
• Channel Qty

  4
• RAID Level

  RAID 0, RAID 1, RAID 5, RAID 10

Optical Storage

• Type

  No optical drive

Monitor

• Monitor Type

  None.

Graphics Controller

• Video Interfaces

  VGA

Networking

• Interface (Bus) Type

  PCI Express x2
• Ethernet Ports

  2 x Gigabit Ethernet
• Ethernet Controller

  HPE 332i
• Data Link Protocol

  Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Controller

  Integrated Lights-Out 5
• Features

  Wake on LAN (WoL), PXE support
• Compliant Standards

  IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion / Connectivity

• Bays

  4 (total) / 4 (free) x hot-swap 3.5″ LFF ?? 2 (total) / 2 (free) x external 5.25″
• Slots

  1 (total) / 1 (free) x PCIe 3.0 x16 – full-length, full-height (x16 mode) ?? 1 (total) / 1 (free) x PCIe 3.0 x16 – full-length, full-height (x4 mode) ?? 2 (total) / 2 (free) x PCIe 3.0 x8 – half-length, full-height (x4 mode) ?? 1 (total) / 1 (free) x M.2 Card
• Interfaces

  1 x VGA ?? 1 x LAN (Gigabit Ethernet) ?? 1 x LAN (Gigabit Ethernet) / HPE iLO ?? 6 x USB 3.0 (1 front, 4 rear, 1 internal) ?? 1 x USB 2.0 (1 in front)

Miscellaneous

• Theft/Intrusion Protection

  Security lock slot (cable lock sold separately), padlock loop
• Security Slot Type

  Kensington security slot
• Compliant Standards

  EMC, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1, UEFI

Power

• Device Type

  Power supply
• Installed Qty

  1
• Voltage Required

  AC 120/230 V (50/60 Hz)
• Power Provided

  350 Watt
• 80 PLUS Certification

  80 PLUS Gold
• Efficiency

  85%

Manufacturer Warranty

• Service & Support

  Limited warranty – parts – 3 years – on-site – response time: next business day ?? Limited warranty – labour – 1 year – on-site – response time: next business day

Dimensions & Weight

• Width

  17.5 cm
• Depth

  47.5 cm
• Height

  36.83 cm
• Weight

  10.1 kg

Environmental Parameters

• Min Operating Temperature

  10 ??C
• Max Operating Temperature

  35 ??C
• Humidity Range Operating

  8 – 90% (non-condensing)
